Supra USB digital audio cable
The standard USB cable is fitted with a Type A USB connector
at one end and a choice of connectors at the other (such as Type
B, Mini-B and Micro-B)
For 2024, the Type-C terminated version is now available - see
here .
As such, it is designed to act as a digital audio cable, between
a computer/streamer and a D-to-A convertor (a "DAC"),
carrying audio signals from the former.
In this way, you can play your music stored on your computer or
mobile phone/tablet or media player, via your hi-fi system (if the
aforementioned DAC is connected to an audio input of your stereo
system).
In the November 2012 issue of What Hi-Fi, the Supra USB cable
won a convincing 5 stars review - it was compared against Audioquest
Cinnamon USB (£59 and 4*), Clearer Audio Silver-line USB (£40 and
3*) and Russ Andrews Kimber USB (£52 and 4*).
See
what What HiFi said here
It also received the What Hi-Fi "USB Cable of the Year"
award for 2012.

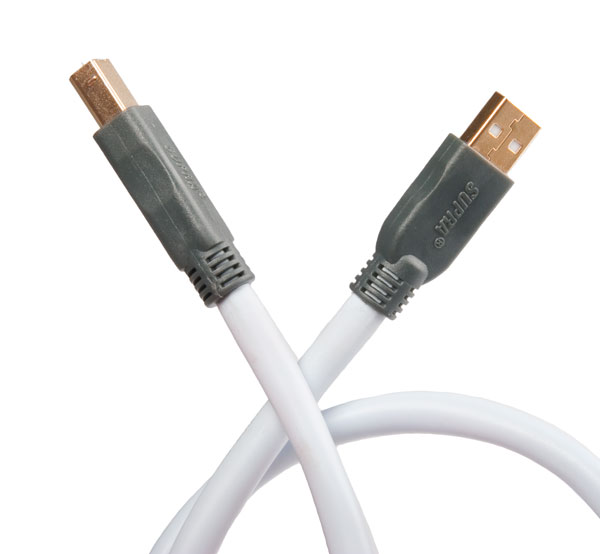

Shown above is: USB A-B cable (factory terminated).
Type A-mini B and A-micro B are also available.
Standard Features:
High Performance, High Speed - Uses a flexible cable with dual screens
for the best RF pick-up protection.
One twisted pair for data and one twisted pair for power, with individual
screens for minimal cross-channel interference.
Low capacitance and efficient noise rejection maintain signal integrity
in long run interconnects.
PE-insulated wires with correct 90 Ohms impedance design.
24K gold plated and shielded connectors.
The connectors are moulded to withstand tough applications and long
term use.
Maximum Data Transfer Rate: 480 Mbits/second (as per USB 2.0 specifications).
Please note:
While USB 2.0 and 3.0 are physically and electrically compatible,
USB 3.0 is a dual-link system that is not currently used for USB
Audio.
Connectors used to terminate USB cables are:
1) Standard Type A to Standard Type B - for use with most mains-powered
DACs - available in the following lengths:
0.7m, 1m, 2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m, 15m
2) Standard Type A to Mini-USB B - for use with some DACs - available
in the following lengths:
1m, 2m, 3m
3) Standard Type A to Micro-USB B - for use with certain mobile
phones, tablets and some DACs - available in the following lengths:
1m, 2m, 3m
4) Standard Type A Male to Standard Type A Female - can be used
as an extension cable - available in the following lengths:
1m, 2m
| Technical Info |
| Mechanical Specifications |
|
| Standard |
USB 2.0 Hi-Speed (with Type A at one end and Type B, mini-B
or Micro-B connectors at the other end) |
| Connectors |
USB Type A,
USB Type B, Type Mini-B, Type Micro-B
USB Type A Female
|
| Signal Direction |
Bi-directional |
| |
|
| Application Examples |
Computer peripherals, DAC's |
| Solder Tin |
Almit SR-34 Super |
| Cable strain relief |
Moulded connector housing |
| |
|
| Electrical properties |
|
| Number of pairs |
2 pieces |
| Conductor area |
0.24 / 23 mm2 / AWG |
| Number of strands |
19 pieces |
| Strand dimension |
Ø 0.127 mm |
| Conductor material |
Tin plated Oxygen-free 5N Copper |
Insulation |
Low capacitance PE |
| Shielding |
Aluminized PET foil |
| Jacket |
Heat and age resistant PVC |
| Flame retardant |
No |
| External dimension |
Ø 7.5 mm |
| |
|
| Electrical performance |
|
| Data transfer rate |
480 Mbit / s (for both USB 2.0 cables) |
| Resistance |
72 Ohm / kilometre |
| Capacitance |
52 pF / metre |
| Impedance |
90 Ohm |
| Velocity factor |
0.66x C (speed of light) |
| |
info correct as of Spring 2024 |
|
