Ground Separators
Supra AGS-10k
NOW DISCONTINUED (SPRING 2024)
High-End Audio Ground Separator helps to isolate your computer from
ground loops allowing you to connect FROM the 2 channel high level
audio outputs (say approx 400-2000mV) of the sound card (in your
computer) or from a computer based media server TO the LINE level
(auxiliary) inputs of your hi-fi system.
Please note that this device is not designed to work with turntables,
nor is it designed to remove hum loops from poorly grounded turntables.
It is really only designed for use where a hum/ground loop is created
by connecting together two pieces of hardware which may each use
separate and incompatible power supplies (such as switch mode power
supplies) and this can lead to grounding issues, when the audio
cables are connected and the equipment is powered up.

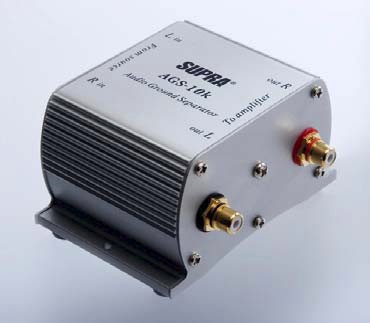

The Supra AGS-10k is a passive hum blocker which is connected between
(say) the audio line-level outputs of a computer/laptop and the
audio inputs of a hi-fi amplifer. Or it can be used between any
two line-level items to avoid ground loop hum.
Different to "common ground" separators, the Supra AGS-10k
is a high-end design using toroid transformers with wide frequency
range and low distortion, even at the lowest frequencies.
The chassis is made from extruded aluminium, which helps prevent
any local RFI pick-up.
Specifications:
Input impedance: 10 kohms
Output impedance: 10 kohms
Ratio: 1:1
Frequency Range: 15 Hz - 22 kHz
Size: 53 (H) x 96 (W) x 89 (L) mm
Weight: 440 g
Please note: No audio cables are supplied with this product, so
you will need 2 pairs of audio cables to connect it to your system.
|
